MOSFET N-CH 55V 30A TO-220AB IRLZ34N is an N-Channel Power MOSFET. This post mainly covers pinout, equivalent, datasheet, circuit, and more details about IRLZ34N N-Channel Power MOSFET.
79
Sep 27, 2021
Carter Benson
Electronic Basics #23: Transistor (MOSFET) as a Switch
MOSFET N-CH 55V 30A TO-220AB
IRLZ34N is an N-Channel Power MOSFET. This post mainly covers pinout, equivalent, datasheet, circuit, and more details about IRLZ34N N-Channel Power MOSFET. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
IRLZ34NPBF
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.38485 | $1.38 |
| 10+ | $1.30647 | $13.06 |
| 100+ | $1.23252 | $123.25 |
| 500+ | $1.16275 | $581.38 |
| 1000+ | $1.09693 | $1096.93 |
IRLZ34N is an N-Channel Power MOSFET that can be used to drive higher voltages and currents from a microcontroller. Because IRLZ34N N MOSFET has a very low on-resistance, it shouldn't require a heat sink until loads exceed 2.5 amps. IRLZ34N N MOSFET is also a logic-level device having a 3.3-volt turn-on threshold. Not all MOSFETs can be fully turned on and driven from logic levels. The MOSFET plug from JeeLabs also uses this MOSFET.

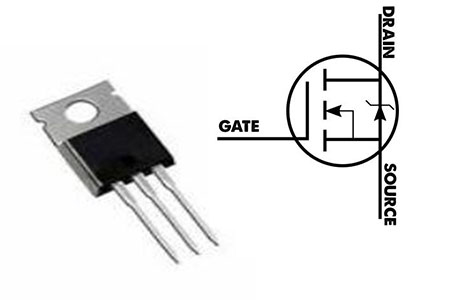

IRLZ34N N MOSFET Pinout
| Pin Number | Pin Name | Pin Description |
| 1 | Gate | Controls the biasing of the MOSFET |
| 2 | Drain | Current flows in through the Drain |
| 3 | Source | Current flows out through the Source and leaves the MOSFET |

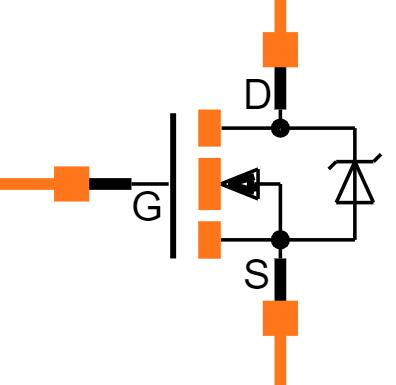

IRLZ34N Symbol

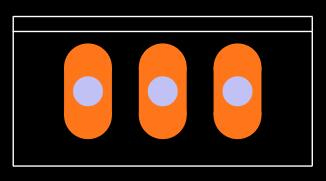

IRLZ34N Footprint
Infineon Technologies IRLZ34NPBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRLZ34NPBF.
Infineon Technologies IRLZ34NPBF technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies IRLZ34NPBF.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 30A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 4V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 68W Tc | |
| Turn Off Delay Time | 21 ns | |
| Operating Temperature | -55°C~175°C TJ | |
| Packaging | Tube | |
| Series | HEXFET® | |
| Published | 1997 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Resistance | 35mOhm | |
| Additional Feature | AVALANCHE RATED | |
| Voltage - Rated DC | 55V | |
| Peak Reflow Temperature (Cel) | 250 | |
| Current Rating | 30A | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Lead Pitch | 2.54mm | |
| Element Configuration | Single | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 56W | |
| Case Connection | DRAIN | |
| Turn On Delay Time | 8.9 ns | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 35m Ω @ 16A, 10V | |
| Vgs(th) (Max) @ Id | 2V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 880pF @ 25V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 5V | |
| Rise Time | 100ns | |
| Vgs (Max) | ±16V | |
| Fall Time (Typ) | 29 ns | |
| Continuous Drain Current (ID) | 30A | |
| Threshold Voltage | 2V | |
| JEDEC-95 Code | TO-220AB | |
| Gate to Source Voltage (Vgs) | 16V | |
| Drain to Source Breakdown Voltage | 55V | |
| Dual Supply Voltage | 55V | |
| Recovery Time | 110 ns | |
| Nominal Vgs | 2 V | |
| Height | 8.77mm | |
| Length | 10.5156mm | |
| Width | 4.69mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Max Continues Drain Current is: 26A
Max Pulsed Drain Current is: 100A
Max Power Dissipation is: 56W
Max Voltage Applied From Drain to Source: 55V
Max Gate to Source Voltage Should Be: ±20V
Package Type: TO-220
Transistor Type: N Channel
Drain to Source Resistance in ON State (RDS on): 0.04Ω
Max Storage & Operating temperature should be: -55 to +175 Centigrade
RFZ34, IRFZ34A, IRFZ34E, IRFZ34N, IRFZ34NL, IRFZ34NS, IRLZ34, IRLZ34N, IRLZ34NL, IRLZ34NS, IRFZ34S, IRFIZ24E, IRFIZ24G, IRFIZ24E, IRFP153(R), IRFSZ24A, MTAJ25N06EL, MTP25N06V, MTP30N06EL, MTP30N06VL, NDP5060, PHX15N06E
Switch Mode Power Supplies
Battery Chargers and BMS
Voltage Converters
Relay drivers
Used as switching electronic signals
Used in battery management
Telecommunication Circuits
Solar Chargers and Power Supplies
Regulators
Motor drives
Electric Power Steering (EPS)
By providing a voltage to the Gate terminal of a MOSFET, we can use it as a switch. Because this is a "FET," the voltage applied at the Gate terminal controls the current flow between the Drain and the Source. MOSFETs can be used for signal switching, regulation, motor driving, and other applications.

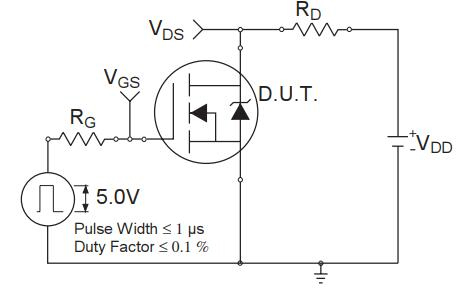

IRLZ34N Switching Time Test Circuit

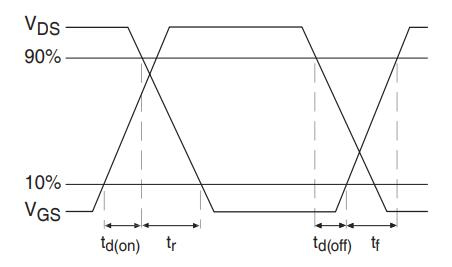

IRLZ34N Switching Time Waveforms
The IRFZ34N MOSFET can be utilized in any general-purpose application that meets its requirements. Switch-mode power supplies, uninterruptible power supply, and DC to DC converters are only a few of the applications. Aside from that, it can also be used as an audio amplifier. The process for employing this MOSFET is the same as for any other MOSFET.

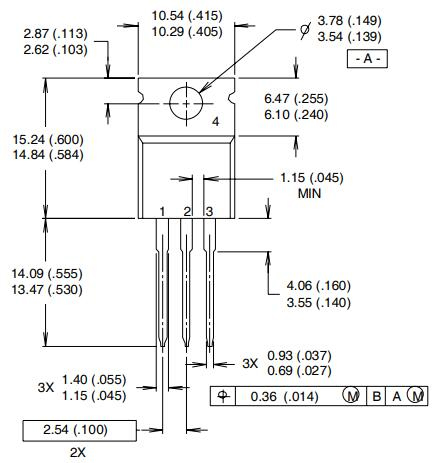

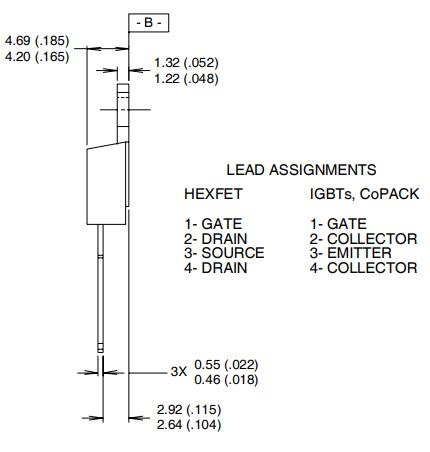

IRLZ34N N MOSFET Package Outline
Infineon Technologies
On April 1, 1999, Siemens Semiconductors officially changed its name to Infineon Technologies. Infineon is a dynamic and flexible company. Success in the highly competitive and ever-changing microelectronics world is our constant goal. As the world's leading designer, manufacturer, and supplier, Infineon has a wide range of products used in various microelectronics applications. Our product portfolio includes not only logic products, including digital, mixed-signal, and analog integrated circuits, but also discrete semiconductor products.
Download datasheets and manufacturer documentation for Infineon Technologies IRLZ34NPBF.
Download datasheets and manufacturer documentation for IRLZ34NPBF
